In high-tension, heavy-duty industrial applications, standard bolting often falls short. These conventional fasteners struggle to distribute loads evenly. They also complicate assembly sequences in blind-hole configurations. You face significant risks when specifying the wrong fastener. Incorrect fastener specification frequently leads to catastrophic joint failure. It causes premature wear on expensive machine components. It creates severe assembly inefficiencies on the factory floor. Choosing the correct stud configuration remains absolutely critical. You must ensure structural integrity across the entire joint. You must also maintain straightforward maintenance accessibility for field technicians. If you ignore these factors, you risk massive equipment failure.
This comprehensive guide breaks down essential technical specifications. It highlights vital configuration options and key evaluation criteria. You will learn exactly how to specify and source the right Double End Stud for critical applications.
Double end studs provide superior load distribution and easier assembly in blind holes compared to standard bolts.
Configuration matters: Specifying an unequal double threaded stud or adding a hex/flange center directly impacts torque control and seating accuracy.
Precise sizing and thread pitch configurations must align strictly with ASME, ASTM, or DIN standards to ensure joint security.
Supplier evaluation should heavily weight material traceability, manufacturing methods (rolled vs. cut threads), and custom tolerance capabilities.
Standard bolts often damage threads inside expensive tapped components. They cause significant wear during frequent assembly and disassembly cycles. Technicians drive headed bolts in and out of tapped holes repeatedly. This repeated action creates severe friction. Friction generates immense heat during installation. This heat causes cold welding between mating metal surfaces. Engineers call this phenomenon thread galling. You want to avoid this scenario entirely. Tapped components often cost thousands of dollars to manufacture or replace.
The solution relies on stationary installation. Studs thread into the base material once. They remain stationary during their entire service life. Technicians apply clamping force using a nut on the free end. This method isolates operational wear to the nut and the exposed stud threads. You can replace a damaged nut easily. You cannot easily repair a stripped engine block or a damaged pump housing.
A successfully implemented joint using a Double End Stud Bolt exhibits clear success criteria. It delivers uniform clamping force across the mating surface. It powerfully resists vibrational loosening during operation. It also ensures accurate, repeatable maintenance access. Maintenance teams can align heavy flanges over the exposed studs effortlessly. The studs act as guide pins during the assembly process.
Elasticity plays a vital role in joint security. Studs stretch slightly under tension. They act like highly stiff springs. This stretch provides a more accurate preload compared to standard headed bolts. Headed bolts introduce twisting forces into the shank as you turn the head. We call this torsional stress. Studs eliminate this torsional stress during final tightening. You achieve pure tension. This mechanical reality ensures superior reliability in high-pressure flange connections.
Configuration choices dictate overall joint performance. You must match the fastener geometry directly to the application demands. Standard catalogs offer several primary variations. You must understand how each variation functions in the real world.
Standard studs feature equal thread lengths on both ends. Engineers typically use them in through-hole applications. High-pressure flange connections rely heavily on these standard designs. You secure them using two heavy hex nuts. The unthreaded center shank rests inside the flange clearance holes. This design handles dynamic loads beautifully.
Conversely, tap-end designs serve a distinctly different purpose. You might source an Unequal Double Threaded Stud for complex blind-hole applications. It features a shorter thread on one side. We call this the tap end. Manufacturers machine this end to tighter tolerances. It often utilizes a Class 5 interference fit. It seats permanently into a tapped hole. The opposite end features a longer thread. We call this the nut end. You use the nut end for tensioning the joint. This unequal design prevents the stud from backing out when technicians remove the nut.
Some applications demand exact installation torque into the base material. A standard stud requires specialized installation tools. You might need a mechanical stud extractor. You might rely on a cumbersome double-nutting technique. These conventional methods often damage the threads. They slow down the assembly process significantly.
You can solve this problem by upgrading your specification. Specify a Double Ended Stud With Hex for these demanding situations. This configuration features a built-in hexagonal unthreaded center section. The hex profile sits directly in the middle of the fastener body.
This simple feature provides a massive application benefit. Engineers and technicians can use a standard wrench or socket. They drive the stud directly into a blind hole rapidly. They apply precise torque easily. They never touch the vulnerable threads with tools. This design ensures highly accurate seating. It completely eliminates thread-damaging installation practices.
Softer base materials introduce unique mechanical challenges. Aluminum engine blocks deform easily under extreme pressure. Cast iron housings often crack if you over-tighten heavy fasteners. You must distribute the surface load carefully to prevent catastrophic damage.
You should strongly consider a Double Ended Stud with Flange for these delicate assemblies. This specialized design integrates a flanged center directly into the shank. The wide flange separates the two threaded sections. It acts as a permanent, built-in washer. It also serves as a robust mechanical depth-stop.
The application benefit becomes obvious immediately during installation. The flange actively prevents over-insertion into tapped holes. Technicians drive the stud until the flange seats firmly against the base material. The wide collar distributes the bearing load over a much larger surface area. This distribution protects softer base materials from crushing. It guarantees consistent installation depths across multi-fastener joints. It also ensures uniform gasket compression.
Configuration Comparison Chart
Configuration Type | Primary Feature | Best Use Case | Installation Benefit |
|---|---|---|---|
Standard Equal Thread | Equal threads on both ends | Through-hole flanges | Accommodates standard double nutting |
Unequal (Tap-End) | Short interference fit end | Blind-hole components | Will not back out during maintenance |
Hex Center | Hexagonal unshank section | High-volume assembly lines | Allows standard wrench installation |
Flanged Center | Built-in collar/washer | Soft material housings | Prevents crushing and over-insertion |
Accurate specification requires a deep understanding of standard dimensions. You cannot simply guess the required lengths. Sizing parameters dictate how well the final joint will perform. You must know how to measure the fastener correctly based on global standards.
Different standards define length differently. Some standards measure overall length (OAL) strictly from end to end. Other standards measure from the first full thread to the first full thread. They exclude chamfers or rounded crowns from the measurement. You must also evaluate diameter-to-pitch ratios carefully. Fine threads offer stronger tensile areas. Coarse threads resist cross-threading in harsh, dirty environments. You must align these choices when defining precise Double end stud sizes for your manufacturing project.
Thread engagement rules form the absolute foundation of joint safety. You must follow transparent assumptions regarding engagement depths. Different materials require different thread lengths to prevent stripping under load. Steel provides high shear strength. Aluminum provides very low shear strength. You must adjust your specifications accordingly.
Material Engagement Guidelines
Base Material | Minimum Engagement Depth | Risk of Stripping |
|---|---|---|
Carbon / Alloy Steel | 1.0 x Nominal Diameter (1D) | Low |
Cast Iron | 1.5 x Nominal Diameter (1.5D) | Moderate |
Aluminum Alloys | 2.0 x Nominal Diameter (2D) | High |
Industry compliance guarantees component interoperability and safety. You must follow established dimensional standards rigidly. ASME B18.31.2 governs many inch-based stud specifications. It outlines exact tolerances for tap-end studs. It defines specific thread classes for interference fits. European engineers rely on DIN 938 and DIN 939. DIN 938 specifies an engagement length exactly equal to 1D. DIN 939 specifies an engagement length of 1.25D. Adhering to these published standards prevents catastrophic field mismatches.
Geometry only solves half the engineering problem. Material selection determines the ultimate survival of the fastener. You must match the metal alloy directly to your specific failure risks. Evaluation dimensions include yield strength, ultimate tensile strength, and environmental corrosion resistance. You must balance these properties carefully.
A stud might possess massive tensile strength. However, it might shatter under impact if it lacks ductility. Yield strength marks the point of permanent deformation. The fastener stretches and stays stretched. Tensile strength marks the point of absolute fracture. The fastener snaps completely. You need sufficient yield strength to maintain clamp load without stretching permanently.
Engineers rely on several common material grades for critical applications:

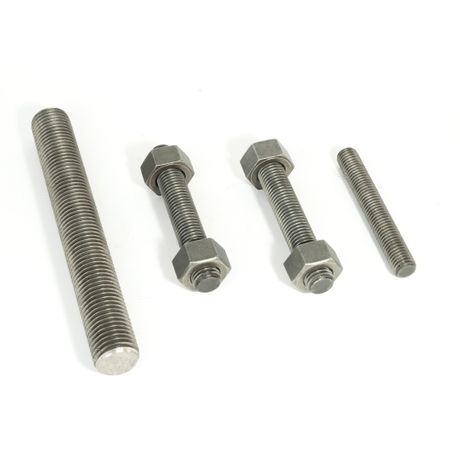

Carbon and Alloy Steels: ASTM A193 Grade B7 and L7 dominate this category. You will find B7 studs in high-pressure, high-temperature piping systems. The steel undergoes a rigorous quench and temper process. You specify L7 studs for extreme low-temperature environments where standard steel becomes brittle.
Stainless Steels: Type 316SS provides excellent general corrosion resistance. It performs exceptionally well in marine environments. It resists chloride attack effectively.
Exotic Alloys: Inconel and Monel excel in hyper-aggressive conditions. You need them for specialized petrochemical environments. They resist harsh acid attacks perfectly at elevated temperatures.
Trust requires rigorous risk mitigation. You cannot rely on a supplier's verbal promise. Substandard metals cause catastrophic joint failures. Counterfeit materials plague the global industrial supply chain. You must demand material test reports (MTRs) for every single batch. You must require verifiable heat lot traceability from your manufacturers. This documentation proves the precise chemical composition. It verifies the mechanical testing results. It protects your equipment from dangerous material substitutions.
Supplier capabilities vary wildly across the global market. You must evaluate their machining processes closely. Thread rolling and thread cutting produce very different physical results. Thread rolling displaces cold metal to form the peaks and valleys. It maintains the grain structure of the steel. The internal grain flows smoothly along the thread contour. This process offers significantly higher fatigue resistance. It also creates much smoother surface finishes. Thread cutting tears the grain structure. It creates micro-stress risers. Buyers should always confirm the manufacturer's primary machining method. Demand rolled threads for any dynamic load applications.
Custom machining capabilities also separate good suppliers from great engineering partners. Standard catalogs rarely fit every complex engineering challenge. Assess a supplier’s ability to modify standard designs rapidly. They should handle non-standard unthreaded body lengths easily. They must execute specialized chamfers for automated assembly lines. You should also evaluate their advanced coating capabilities. Proprietary surface coatings like PTFE or Zinc Nickel prevent galvanic corrosion. They also control friction during installation. Predictable friction ensures accurate torque-to-tension conversion.
You must structure your Request for Quote (RFQ) clearly. Clear communication prevents costly delays and specification errors. Include these exact elements to ensure accurate pricing and lead times:
Submit complete blueprint drawings with explicit tolerance callouts.
State the exact thread classes required (e.g., Class 2A for standard fit vs Class 3A for tight fit).
Specify the exact material grades and any necessary post-machining heat treatments.
List all required lot testing and quality documentation up front.
Detail any specialized packaging requirements to protect delicate threads during ocean transit.
Specifying the correct stud configuration requires rigorous technical alignment. You must match thread designs closely to your specific assembly processes. Exact sizing and appropriate material grades guarantee long-term joint integrity. You protect your valuable machinery when you choose the right fastener.
Never compromise on dimensional standards. Do not accept industrial fasteners without complete material traceability. A minor upfront cost compromise frequently leads to massive operational failures later. Quality fasteners act as cheap insurance for expensive capital equipment.
Consult with engineering-led fastening manufacturers early in your design phase. Review your joint design with their technical teams. Request a custom quote based on your actual operational loads and environmental conditions. Procure certified standard studs to ensure absolute reliability in the field.
A: Fully threaded studs have continuous threads end-to-end. Engineers use them for continuous tensioning and heavy flange bolting. Double end studs feature an unthreaded center shank. This unthreaded section provides specific grip lengths. It creates precise stress distribution. It also prevents the stud from advancing too far into a tapped hole during assembly.
A: Measurement depends entirely on the guiding standard. It typically involves measuring the thread diameter and the thread pitch. You must also measure the specific length of the tap end and the nut end. Total overall length is often measured end-to-end. However, some ASME and DIN specifications exclude crowns or chamfers from this total length.
A: Specify a hex center when your assembly process requires high precision. Technicians must often torque the stud directly into a blind hole. The hex allows them to use a standard wrench. You want to avoid using double-nutting techniques or stud extractors. These methods frequently damage threads during installation. The hex eliminates this risk completely.
