The offshore oil and gas industry, alongside the rapidly expanding offshore wind energy sector, operates in some of the most unforgiving environments on the planet. Deepwater platforms, subsea manifolds, and topside modules are constantly subjected to extreme mechanical stress, dynamic wave loads, high-velocity winds, and the relentless corrosive power of saltwater. In these monumental engineering marvels, the structural integrity of the entire facility relies heavily on the smallest components: the fastening systems. Among these, the threaded rod stands out as a fundamental building block for securing critical structural joints. Unlike standard bolts, a threaded rod provides the versatility, strength, and tensioning capabilities required to hold massive steel flanges and structural beams together under immense pressure.
Offshore platforms are essentially massive assemblies of steel and concrete, pieced together through thousands of structural joints. If a single joint fails due to inadequate fastening, the consequences can range from costly operational downtime to catastrophic structural collapse. Therefore, understanding the metallurgy, coating technologies, mechanical properties, and installation procedures of a threaded rod is not just a matter of procurement—it is a critical engineering imperative. This comprehensive guide delves deep into the role of threaded rods in offshore platform structural joints, exploring why they are indispensable, how they are manufactured, and what makes them capable of withstanding the harshest marine environments.
In the architecture of offshore platforms, structural joints are the nodes where different structural members intersect and transfer loads. These joints must accommodate static loads, such as the weight of the platform itself, and dynamic loads, such as wind, waves, and seismic activity. A threaded rod is uniquely designed to handle these complex load transfers. By passing through unthreaded holes in the structural members and being secured with heavy hex nuts and washers on both ends, a threaded rod creates a high-tension clamping force. This clamping force creates friction between the joined surfaces, which prevents lateral movement and shear failure.
Furthermore, offshore platforms often require fastening solutions that can span long distances between thick flanges. Standard bolts with forged heads are often limited in length and cannot provide the necessary reach. A threaded rod, which can be cut to any custom length, offers the ultimate flexibility for offshore construction. Whether it is used to secure a blowout preventer (BOP) on the ocean floor or to anchor a helipad on the topside deck, the threaded rod is the backbone of offshore structural stability.
The mechanical principle behind a threaded rod is relatively simple but highly effective. The helical threads act as an inclined plane wrapped around a cylinder. When a nut is turned along these threads, the rotational force (torque) is converted into linear force (tension). In offshore structural joints, this tension is paramount. The threaded rod is stretched elastically during installation, acting much like a very stiff spring. This elastic stretch maintains a constant clamping force on the joint, even when the joint is subjected to vibrations from drilling equipment or the rhythmic pounding of ocean waves.
To ensure this mechanism works flawlessly in a marine environment, the threaded rod must possess specific mechanical properties. It must have a high yield strength to prevent permanent deformation under load, and high tensile strength to resist breaking. Additionally, the threads must be precision-engineered to ensure a smooth engagement with the nuts, preventing galling—a common issue where friction causes the threads to seize and weld together during installation.
The selection of the base material for a threaded rod used in offshore applications is governed by strict international standards, primarily those set by the American Society for Testing and Materials (ASTM) and the American Petroleum Institute (API). Because offshore platforms operate in varying temperature ranges—from the freezing depths of subsea environments to the high-heat areas near exhaust stacks—the material must be carefully matched to the operating conditions.
For general high-pressure and high-temperature offshore applications, ASTM A193 Grade B7 is a common choice. These threaded rods are manufactured from chromium-molybdenum steel and are quenched and tempered to achieve high strength. However, in environments where hydrogen sulfide (H2S) is present—a condition known as "sour gas" which is common in offshore drilling—standard B7 rods are susceptible to sulfide stress cracking. In these scenarios, a threaded rod made to ASTM A193 Grade B7M or ASTM A320 Grade L7M is required, as these materials undergo specialized heat treatment to reduce hardness and resist cracking.
For subsea applications where temperatures can drop significantly, ASTM A320 Grade L7 is the preferred material. This low-temperature alloy steel maintains its toughness and ductility even in freezing waters, preventing brittle fracture of the threaded rod under sudden impact loads.
While selecting the right base alloy is crucial, bare steel cannot survive the highly corrosive saltwater environment of an offshore platform. Galvanic corrosion, pitting, and crevice corrosion can rapidly degrade the structural integrity of a threaded rod, leading to catastrophic joint failure. To combat this, advanced surface coatings are applied. As seen in the provided image, PTFE (Polytetrafluoroethylene) and Xylan coatings are the industry gold standard for offshore threaded rods.

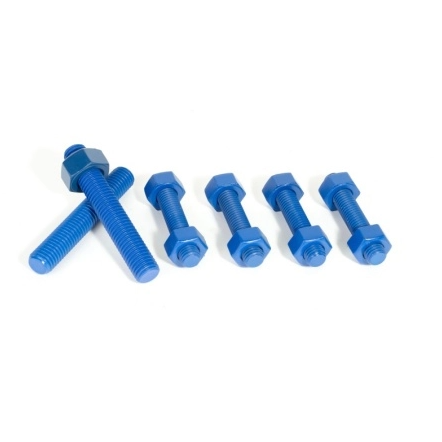

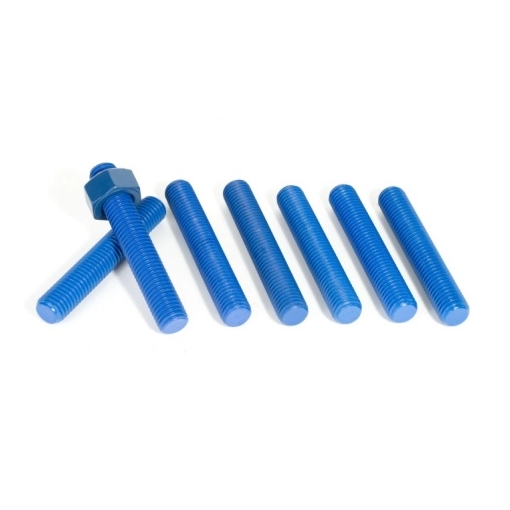

A PTFE or Xylan coated threaded rod offers a multi-layered defense system. First, the base metal is usually plated with a sacrificial layer of zinc or cadmium. Over this, the fluoropolymer coating (like Xylan 1070) is applied and baked. This coating provides an impenetrable barrier against saltwater, chemicals, and UV radiation. Moreover, PTFE has an exceptionally low coefficient of friction. This self-lubricating property is incredibly beneficial during installation, as it allows for highly accurate torque-to-tension conversion and prevents thread galling. When maintenance is required years later, a PTFE coated threaded rod can be easily unbolted, whereas a rusted, uncoated rod would need to be cut off with a torch.
When engineers design the structural joints of an offshore platform, they do not simply ask for a generic bolt. They specify a highly engineered threaded rod fastener that meets exact dimensional and metallurgical criteria. The specifications of these fasteners dictate their performance under extreme stress.
One of the primary specifications is the thread pitch. Threaded rods for offshore use typically follow either the Unified National Coarse (UNC) or the 8-Thread Series (8UN). For rods larger than one inch in diameter, the 8UN series is almost exclusively used in the oil and gas industry. This means there are exactly 8 threads per inch, regardless of the rod's diameter. This standardization ensures that the cross-sectional area of the threaded rod fastener remains as large as possible, maximizing its tensile strength and load-bearing capacity.
Another critical specification is the dimensional tolerance. The threads must adhere to Class 2A (for external threads) and Class 2B (for internal threads on the nuts) fit standards. This provides a balance between a tight, secure fit and enough clearance to accommodate the heavy PTFE or Xylan coatings without binding. The length of the threaded rod fastener is also precisely calculated to ensure that, once installed, at least one to two full threads extend beyond the nut on both ends. This visual indicator confirms full thread engagement and maximum strength.
The manufacturing of a threaded rod involves rigorous adherence to dimensional standards. The most common method for creating the threads on high-strength offshore rods is thread rolling. Unlike thread cutting, which removes metal and interrupts the grain structure of the steel, thread rolling is a cold-forming process. Massive dies press the thread profile into the steel blank, compressing the material and aligning the grain structure along the contours of the threads.
A thread-rolled threaded rod exhibits significantly higher fatigue resistance and shear strength compared to a cut-thread rod. This is vital for offshore platforms, where the structural joints are constantly subjected to cyclic loading from waves and wind. The smooth, burnished surface left by the rolling process also provides an excellent substrate for the subsequent application of anti-corrosion coatings, ensuring a uniform and durable protective layer.
The versatility of the threaded rod makes it ubiquitous across all zones of an offshore platform. From the splash zone, where the structure meets the ocean surface, to the highest points of the drilling derrick, these components are hard at work. Because of the diverse requirements of these different zones, specifying the correct offshore platform fasteners is a complex logistical task.
In subsea applications, threaded rods are used to assemble the massive flanges of underwater pipelines and subsea trees. Here, the pressure is immense, and the environment is highly corrosive. The threaded rods used in these subsea structural joints are often heavily coated with Xylan and are installed using remotely operated vehicles (ROVs). The low friction of the coated offshore platform fasteners allows the ROVs to apply precise hydraulic tension, ensuring a leak-proof seal on the flanges.
In the splash zone, the environment is arguably the most aggressive. The constant cycle of wetting by saltwater and drying by the wind accelerates corrosion exponentially. Threaded rods used in this zone to secure jacket legs, boat landings, and riser clamps must possess the highest level of corrosion resistance. Often, specialized alloys like Inconel or Monel are used in conjunction with advanced fluoropolymer coatings to ensure longevity.
The topside of an offshore platform is a crowded, heavy-duty industrial environment. It houses the living quarters, drilling equipment, power generation modules, and processing facilities. These massive modules are built onshore and then lifted onto the platform jacket at sea. Securing these modules requires a threaded rod of immense size and strength.
During the integration of topside modules, threaded rods act as the primary structural tie-downs. They must absorb the shock loads of the crane placement and the subsequent dynamic loads of the operating equipment. For example, the structural joints beneath a heavy gas turbine generator are subjected to intense high-frequency vibrations. A properly tensioned threaded rod prevents these vibrations from loosening the joint, ensuring the generator remains securely anchored to the deck.
The journey of a threaded rod from raw steel to a critical offshore component involves a stringent manufacturing and quality control process. Because failure is not an option, every structural joint fastener must be fully traceable back to its original steel melt. This traceability is a mandatory requirement for offshore operations, allowing engineers to verify the chemical composition and mechanical properties of the fastener.
The manufacturing process begins with the selection of high-grade alloy steel bars. These bars undergo a rigorous heat treatment process—quenching and tempering—to achieve the exact balance of hardness, yield strength, and ductility required by the ASTM specifications. If the structural joint fastener is too hard, it becomes brittle and susceptible to cracking under impact. If it is too soft, it will stretch and lose its clamping force under load. Precision heat treatment is the key to achieving the perfect mechanical profile.
Following heat treatment, the rods are cut to length and chamfered. The thread rolling process is then executed with precision dies. After threading, the structural joint fastener undergoes extensive non-destructive testing (NDT). Magnetic Particle Inspection (MPI) is commonly used to detect any microscopic surface cracks that could propagate under stress. Ultrasonic testing may also be employed to ensure there are no internal voids or inclusions in the steel.
Quality assurance for a threaded rod destined for an offshore platform extends beyond mechanical testing. The coating process is equally scrutinized. Before the PTFE or Xylan coating is applied, the threaded rod must be thoroughly cleaned and grit-blasted to achieve a specific surface profile. This ensures optimal adhesion of the coating.
Once the coating is baked on, it is tested for thickness, adhesion, and uniformity. A coating that is too thick will interfere with the thread fit, making it impossible to thread the nut. A coating that is too thin will fail to provide adequate corrosion protection. Furthermore, salt spray testing is often conducted on sample batches to simulate years of exposure to the marine environment, verifying that the threaded rod will perform as expected over its designated lifespan.
Even the highest quality threaded rod will fail if it is not installed correctly. The integrity of offshore structural joints depends entirely on achieving and maintaining the correct clamping force. In the past, heavy sledgehammers and striking wrenches were used to tighten large nuts, a process that was inaccurate and dangerous. Today, the installation of a threaded rod on an offshore platform is a highly controlled, precision engineering task.
Hydraulic tensioning is the preferred method for installing large-diameter threaded rods in critical offshore joints. A hydraulic tensioner is placed over the nut and threaded onto the exposed end of the rod. Hydraulic pressure is applied, physically stretching the threaded rod to a predetermined length. While the rod is stretched, the nut is turned down tightly against the flange face with minimal effort. When the hydraulic pressure is released, the rod attempts to return to its original length, creating a massive, highly accurate clamping force. This method eliminates the friction variables associated with torque wrenches and ensures uniform tension across all threaded rods in a multi-bolt flange or joint.
When hydraulic tensioning is not feasible due to space constraints, hydraulic torque wrenches are used. However, torqueing a threaded rod introduces the variable of friction. Approximately 50% of the applied torque is used to overcome friction between the nut face and the washer, and another 40% is used to overcome friction in the threads. Only about 10% of the rotational force actually translates into stretching the threaded rod.
This is where the PTFE and Xylan coatings prove their worth. The low-friction surface of a coated threaded rod provides a consistent and predictable coefficient of friction. This allows engineers to calculate the required torque value with high accuracy, ensuring the threaded rod achieves the correct tension. Proper lubrication, using anti-seize compounds compatible with the coating, is also critical during the torqueing process to prevent galling and ensure accurate load transfer.
The utilization of high-quality threaded rods in offshore platform structural joints provides unparalleled engineering benefits. As the backbone of marine infrastructure, these components are designed to deliver maximum safety, reliability, and longevity. The core advantages of specifying premium threaded rods for offshore applications include:
Exceptional Tensile Strength: Manufactured from premium alloy steels (such as ASTM A193 B7, B7M, L7) and heat-treated to exact specifications, a threaded rod provides the massive clamping force required to secure heavy structural joints under extreme dynamic loads.
Superior Corrosion Resistance: Coated with advanced fluoropolymers like PTFE and Xylan 1070 over a sacrificial zinc or cadmium plating, these rods resist saltwater corrosion, chemical attack, and UV degradation, significantly extending the lifespan of the offshore platform.
Precision Threading: Utilizing cold-formed thread rolling technology, a threaded rod exhibits enhanced fatigue resistance, smoother thread engagement, and a reduced risk of galling compared to cut threads, ensuring reliable installation and maintenance.
Predictable Installation: The self-lubricating properties of the PTFE coatings provide a consistent coefficient of friction, allowing for highly accurate hydraulic torqueing and tensioning, which is critical for achieving uniform load distribution across structural joints.
Customizable Flexibility: Unlike standard headed bolts, a threaded rod can be manufactured and cut to any custom length, providing the versatility needed to span thick flanges and secure complex topside modules and subsea manifolds.
Full Traceability and Certification: Manufactured under strict API and ASTM standards, every premium threaded rod comes with complete material test reports (MTRs), ensuring full traceability and compliance with rigorous offshore safety regulations.
A standard bolt has a forged head on one end and threads on the other, limiting its length and application. A threaded rod is fully threaded (or threaded on both ends) and uses nuts on both sides. This allows for custom lengths, greater tensioning control using hydraulic tensioners, and the ability to span large distances between thick flanges in offshore structural joints.
Bare steel rapidly corrodes in saltwater environments due to oxidation and galvanic reactions. PTFE and Xylan coatings provide a robust, impermeable barrier against moisture and chemicals. Additionally, their low coefficient of friction prevents thread galling during installation and allows for accurate torque-to-tension conversion.
ASTM A193 Grade B7 is a standard specification for high tensile strength alloy steel bolting materials used in high-temperature or high-pressure service. A B7 threaded rod is made from chromium-molybdenum steel, quenched and tempered to achieve high yield and tensile strength, making it ideal for the heavy loads experienced on offshore platforms.
Thread rolling is a cold-forming process that presses the thread profile into the steel, rather than cutting metal away. This process aligns the grain structure of the steel with the thread profile, significantly increasing the fatigue resistance, shear strength, and surface smoothness of the threaded rod, which is crucial for dynamic offshore environments.
While a threaded rod can technically be reused if it passes strict visual and non-destructive inspections, it is generally recommended to replace them in critical offshore structural joints. Once a threaded rod has been tensioned, yielded, and exposed to harsh marine conditions, its mechanical properties may be compromised. Replacing them ensures maximum safety and structural integrity.
