Standard hex nuts form the reliable backbone of countless static assemblies across global industries today. However, high-vibration, intense-heat, or security-sensitive environments instantly expose their mechanical limitations. Relying on basic fasteners in dynamic conditions presents a massive engineering risk.
You must find the perfect balance for your application. Over-engineering everyday joints using costly specialty fasteners drives up your Bill of Materials (BOM) unnecessarily. Conversely, under-engineering dynamic joints invites catastrophic system failures, costly warranty claims, and severe safety hazards.
We will explore a precise technical evaluation framework to help you navigate these critical design choices. You will learn exactly when an assembly mandates a specialty upgrade and how to properly specify these components. We will also cover vital procurement strategies and replacement protocols to ensure long-term joint integrity.
Standard nuts rely solely on clamping force and thread friction; special nuts (like lock nuts, flange nuts, or tamper-proof nuts) introduce mechanical or material features to prevent loosening.
The decision to upgrade hinges on three risk factors: dynamic load (vibration), thermal cycling, and security requirements.
Identifying a **special nut size** requires measuring beyond thread pitch and diameter to include overall height, flange width, and locking mechanism clearances.
**Special nut replacement** carries unique risks; many torque-prevailing nuts are single-use and cannot be safely re-torqued.
Basic hex nuts secure joints by stretching the bolt slightly. This stretch acts like a stiff spring. It creates clamping force. This force generates static friction between the mating threads. Standard assemblies function perfectly under static conditions. However, dynamic loads disrupt this fragile friction balance entirely.
Transverse vibration causes rapid joint failure. Constant side-to-side movement triggers micro-slip between the thread flanks. The static friction breaks. The nut simply backs off the bolt. Thermal cycling introduces similar stresses. Metals expand when exposed to heat. They contract when cooling down. This continuous physical movement slowly degrades the initial clamp load. Once you lose clamping force, standard nuts loosen effortlessly.
Security and vandalism introduce non-mechanical threats. Standard hex profiles are universally recognized. Anyone carrying a basic wrench can remove them. Public-facing infrastructure remains highly vulnerable. Vandals frequently target transit seating or playground equipment. Competitors might tamper inside easily accessible machinery enclosures.
The business impact of fastener failure is severe. A standard hex piece costs mere pennies to procure. Yet, a loosened joint triggers massive secondary expenses. You face expensive production downtime. You pay premium labor rates for emergency field repairs. Catastrophic joint separation damages your brand reputation permanently. You must evaluate these failure risks against your initial component savings.
Engineers design upgraded fasteners to overcome the exact limitations of standard hex profiles. We categorize any Special Nut by its specific mechanical advantage. You must understand how these mechanisms alter assembly behavior.
These fasteners resist loosening without seating against a surface. Nylon insert variants (Nyloc) feature a captive polymer collar. The bolt threads bite into this collar during installation. This plastic deformation creates high interference friction. All-metal variants (Stover) use physically distorted top threads. They grip the bolt tightly through metal-to-metal friction.
They behave very differently from standard hardware. You cannot spin them down the thread by hand. They require continuous wrench torque simply to run down the bolt. This prevailing torque prevents them from backing off during severe vibration.

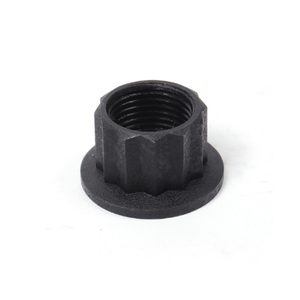

Flange fasteners feature an integrated, flared base. This base acts exactly like a built-in washer. The mechanism relies on surface area math. Pressure equals force divided by area.
You eliminate the need for a separate flat washer entirely. This reduces your part count and speeds up assembly times. The wider base distributes the clamping load over a significantly larger surface. It prevents the fastener from crushing softer mating materials like aluminum or plastics.
These fasteners prioritize access control and specialized retention. They utilize unique external geometries instead of standard hex shapes. Locking wheel nuts (lug nuts) feature intricate, asymmetrical grooved patterns. Breakaway shear nuts feature a hex head that snaps off at a predetermined torque limit.
Standard tools cannot grip these profiles. You require a proprietary keyed socket for installation and removal. Breakaway variants leave behind a smooth, conical shape. They become permanently tamper-proof once installed.
You need a structured approach to fastener selection. Upgrading blindly wastes money. Ignoring obvious risks causes dangerous failures. We evaluate four primary constraints to make optimal engineering decisions.
Vibration Severity: Use standard nuts for static indoor shelving. Mandate locking fasteners for electric motors, heavy earthmoving machinery, and automotive chassis assemblies.
Temperature Constraints: Heat destroys polymer materials. Nylon-insert fasteners fail completely above 250°F (121°C). Specify all-metal locking variants for exhaust manifolds or aerospace turbine housings.
Assembly Speed vs. Component Cost: Standard hex components spin on freely. You can assemble them incredibly fast. Upgraded prevailing-torque fasteners take longer to install. However, they reduce your total part count by eliminating messy split-ring lock washers.
Maintenance Frequency: Standard nuts offer excellent reusability. Evaluate your maintenance schedule closely. If the joint requires frequent teardowns, standard hardware might be preferable. Prevailing-torque fasteners wear out quickly.
Review the application comparison chart below to guide your initial selection process.
Application Environment | Standard Hex | Nylon Insert (Nyloc) | All-Metal (Stover) | Flange Profile |
|---|---|---|---|---|
High Vibration | Not Recommended | Excellent | Excellent | Moderate |
Extreme Heat (>250°F) | Acceptable | Fails (Melts) | Excellent | Acceptable |
Soft Mating Surface | Requires Washer | Requires Washer | Requires Washer | Excellent (No Washer) |
Frequent Disassembly | High Reusability | Low Reusability | Single Use | High Reusability |
Dimensional specifications extend far beyond basic thread pitch. M8 or 5/16" dictates the internal thread compatibility only. Specifying the correct Special nut size dictates your overall operational clearance.
Standard hex pieces feature predictable, low-profile dimensions. Specialty fasteners often require significantly more physical space. A high-profile nylon lock nut might not fit inside a shallow recessed counterbore. An oversized flange base will interfere with nearby sidewalls. You must verify spatial constraints during the CAD design phase.
You cannot rely on standard DIN/ISO hex tables for specialty hardware. You must utilize a dedicated Special nut size chart provided by your manufacturer. Locking feature dimensions and flange diameters vary drastically between different brands.
Instruct your procurement team to cross-reference four critical dimensions:
Thread Size & Pitch: Ensures mating compatibility with the bolt.
Width Across Flats (WAF): Determines the required wrench or socket size.
Overall Height: Confirms the fastener clears any moving parts above the joint.
Flange Diameter: Ensures the base does not overlap adjacent assembly edges.
Advanced fasteners require careful material selection. Stainless steel components offer excellent corrosion resistance. However, they suffer heavily from thread galling. High installation friction causes the threads to cold-weld together permanently. You must specify anti-seize compounds to prevent this.
Watch out for galvanic corrosion. Mating dissimilar metals in wet environments accelerates rust. Ensure your fastener plating matches the surrounding assembly materials perfectly.
Field maintenance introduces major structural risks. Technicians often treat specialty fasteners like standard hardware. This assumption leads to dangerous joint degradation.
Most torque-prevailing fasteners function as single-use items. Nylon inserts undergo permanent plastic deformation during their first run-down. Deformed metal threads wear smooth against the harder bolt. These fasteners lose up to 30% of their holding power after just one installation. You cannot safely re-torque them to original specifications. Treat them as disposable maintenance items.
Field engineers must follow strict protocols for Special nut replacement. Identify the exact mechanism removed from the joint. Never improvise with incorrect hardware. Do not substitute a dedicated locking mechanism with a standard hex and lock-washer combo. You must secure engineering approval before making any component substitutions in dynamic assemblies.
Torque specifications will differ heavily. Upgraded fasteners inherently generate more internal friction. You need higher torque wrench values to achieve the exact same clamping force as a standard piece. Always consult the manufacturer's updated K-factor torque charts before installation.
Sourcing specialty hardware requires rigorous documentation. Follow a structured procurement path to ensure assembly success.
Define Application Requirements: Document your exact dynamic load metrics. Map out the expected vibration profile. Note any severe environmental exposures like saltwater spray, chemical washdowns, or extreme thermal cycling.
Verify Compliance: Ensure your selected fastener meets strict industry-specific standards. Automotive joints demand ISO compliance. Aerospace assemblies require rigid AS certifications. Structural construction projects rely heavily on ASTM standards.
Requesting Samples: Never buy in bulk immediately. Request a small test batch from the manufacturer. Test the fasteners for galling issues. Measure how the new hardware impacts your assembly line speed. Verify torque-tension consistency across multiple installations.
Standard hardware remains highly cost-effective for simple, static applications. However, special nuts act as a crucial insurance policy against catastrophic joint failure in dynamic environments. You protect your entire assembly by specifying the correct fastener mechanism.
Take these actionable steps to optimize your next build:
Audit your existing BOM for joints experiencing high vibration or thermal stress.
Align the specific fastener mechanism (locking, load-spreading, or security) directly with your most likely root cause of failure.
Consult manufacturer size charts to verify physical clearance before finalizing CAD models.
Establish strict single-use replacement protocols for your field maintenance teams.
A: You can use a standard hex temporarily if the equipment must operate immediately. However, this is strictly a temporary fix. Dynamic loads will eventually loosen it. You must replace it with the correct engineering-approved specialty fastener at the earliest maintenance interval.
A: Measure the internal thread diameter and pitch using a thread gauge. Measure the Width Across Flats (WAF) using calipers to determine socket size. Finally, measure the overall height and maximum base diameter to ensure it fits within your application's physical clearances.
A: These utilize security locking mechanisms designed specifically for anti-theft protection, not vibration resistance. The unique asymmetrical external geometry prevents standard tools from gripping the fastener. This deters unauthorized removal of high-value automotive wheels or public infrastructure components.
A: You use the same standard torque wrench. However, your target torque value will change. Prevailing-torque mechanisms introduce significant additional friction. You must recalculate the torque value to achieve the correct final clamping force. Always consult the manufacturer's specific torque-tension charts.
