TL;DR: In the demanding fields of modern infrastructure, the integrity of structural connections is paramount. The Carbon Steel Heavy Hex Nut stands as a critical component in ensuring the safety, durability, and longevity of massive structures. Designed with a wider stance and greater thickness than standard nuts, it provides superior load distribution and exceptional resistance to the dynamic forces experienced by bridges and viaducts. This comprehensive guide explores the metallurgical properties, manufacturing processes, installation protocols, and unparalleled advantages of using these specialized fasteners in heavy construction.

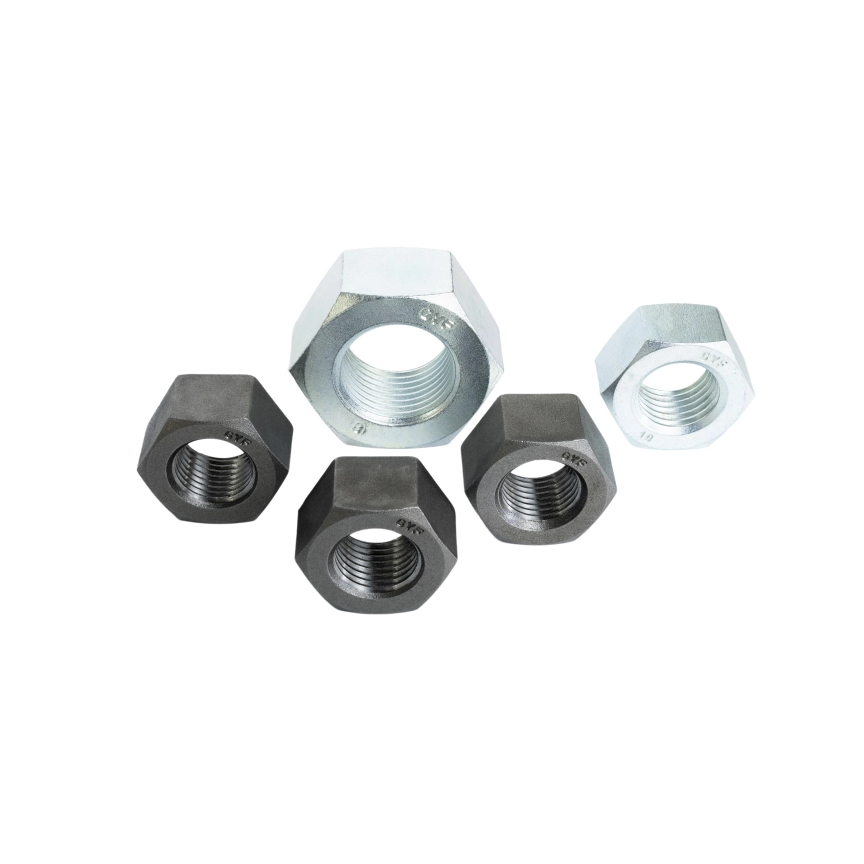

High-Strength Carbon Steel Heavy Hex Nut for Structural Applications
When engineers and architects design monumental structures that must withstand the test of time, wind, and immense weight, every single component matters. The selection of the right carbon steel nut is not merely a matter of joining two pieces of metal; it is a critical engineering decision that dictates the overall structural integrity of the project. Among the various fastening solutions available, the heavy hex profile is specifically engineered to handle the extreme tension and shear forces inherent in large-scale public works.
To truly appreciate the engineering behind massive infrastructure projects, one must understand the foundational elements that hold them together. The Carbon Steel Heavy Hex Nut is specifically designed to be wider across the flats and slightly thicker than a standard hex nut. This increased dimensional profile is not arbitrary; it is a calculated design choice that significantly increases the bearing surface area of the fastener. By distributing the clamping load over a larger area, the nut minimizes the risk of crushing or damaging the underlying steel plates, which is a common failure point in high-tension applications.
Furthermore, the increased thread engagement length provided by the extra thickness ensures that the fastener can develop the full tensile strength of the corresponding bolt without stripping the threads. This is particularly crucial when dealing with high-strength structural bolts, such as ASTM A325 or A490, where the tension applied during installation is immense. The robust nature of this fastener makes it the ideal choice for demanding environments.
The secret to the immense strength of the Carbon Steel Heavy Hex Nut lies in its precise metallurgical composition. Carbon steel is an alloy composed primarily of iron and carbon, with trace amounts of other elements like manganese, phosphorus, and sulfur. The carbon content is the primary driver of the material's hardness and tensile strength. For heavy structural applications, medium carbon steel is typically utilized. This provides an optimal balance between high strength and sufficient ductility, preventing the nut from becoming brittle under sudden impact loads or extreme cold temperatures.
Manganese is often added to the alloy to improve the hardenability of the steel and to enhance its resistance to wear and abrasion. Meanwhile, strict metallurgical controls are implemented to keep impurities like phosphorus and sulfur to an absolute minimum, as these elements can introduce microscopic flaws that compromise the structural integrity of the fastener under extreme stress. This precise chemical balance ensures that every nut performs predictably under maximum load.
Bridge construction represents one of the most challenging disciplines in civil engineering. Bridges are not static entities; they are dynamic structures that constantly move, flex, and vibrate in response to traffic, wind, and thermal expansion. In this volatile environment, the fastener must maintain a relentless grip. The Carbon Steel Heavy Hex Nut is uniquely suited to this task. Its robust profile allows it to withstand the continuous cyclical loading that bridges experience daily. Whether it is a suspension bridge, a cable-stayed bridge, or a traditional truss bridge, these nuts are utilized in the primary load-bearing connections.
When heavy freight trains or convoys of commercial trucks cross a bridge, the vibrations travel through the steel girders directly into the bolted joints. Standard fasteners are prone to self-loosening under such continuous vibration. However, the superior clamping force and wider bearing face of the heavy hex design create immense friction between the nut, the washer, and the steel beam, effectively locking the assembly in place and preventing catastrophic joint failure.
Managing dynamic loads is a complex engineering challenge. A dynamic load changes in magnitude, direction, or point of application over time. The Carbon Steel Heavy Hex Nut excels in these conditions because it allows for high pre-tensioning during installation. By tightening the nut to a specific, highly calibrated tension, the bolted joint relies on the friction between the steel plates rather than the shear strength of the bolt itself. This is known as a slip-critical connection.
In a slip-critical connection, the Carbon Steel Heavy Hex Nut ensures that the steel plates do not slide against each other, even when subjected to severe lateral forces from gale-force winds or seismic tremors. This rigidity is what prevents the bridge framework from warping or collapsing, ensuring the safe passage of millions of vehicles over the structure's lifespan.
Viaducts, which are essentially long bridges consisting of a series of arches or spans supported by a series of piers, present their own unique set of construction challenges. They often span valleys, gorges, or other roadways, requiring incredibly long stretches of continuous structural steel. In these applications, the fastener acts as the ultimate bridge construction fastener viaduct fastener, linking massive prefabricated steel sections together high above the ground.
The assembly of viaducts often involves lifting multi-ton steel girders into place using heavy cranes. The connection points must be secured rapidly and reliably to maintain the construction schedule and ensure the safety of the ironworkers. The standardized dimensions and predictable performance of the heavy hex profile allow construction crews to use automated tensioning tools to secure hundreds of joints a day with absolute confidence in the structural outcome.
The structural integrity of a viaduct relies entirely on the continuity of its load path. If a single connection point fails, the stress is redistributed to adjacent joints, potentially triggering a progressive collapse. The Carbon Steel Heavy Hex Nut mitigates this risk by providing a connection point that is often stronger than the surrounding steel beams themselves. When properly specified and installed, the threads of the nut will not strip, and the body of the nut will not fracture, even if the bolt is tensioned to its absolute breaking point.
This over-engineering is a deliberate safety factor built into modern construction codes. By ensuring that the fastening mechanism is the strongest link in the chain, engineers can accurately predict how a viaduct will behave under extreme conditions, such as a major earthquake or an unprecedented traffic jam involving heavy commercial vehicles.
The production of a high-quality Carbon Steel Heavy Hex Nut is a highly controlled industrial process governed by strict international standards, such as those set by the American Society for Testing and Materials (ASTM) and the American Society of Mechanical Engineers (ASME). These standards dictate everything from the exact chemical composition of the raw steel to the precise dimensional tolerances of the finished product. Common grades used in structural applications include ASTM A563 (Grades C, C3, D, DH, and DH3) and ASTM A194 (Grade 2H).
The manufacturing process typically begins with high-grade carbon steel wire or bar stock. For smaller diameters, the nuts are often cold-formed. Cold forming involves forcing the steel into a die at room temperature, a process that not only shapes the nut but also work-hardens the material, significantly increasing its yield strength. For larger diameters, which are common in heavy bridge construction, hot forging is utilized. The steel is heated to a malleable temperature before being pressed into the heavy hex shape, ensuring a uniform internal grain structure free of microscopic voids.
Following the initial forging process, the Carbon Steel Heavy Hex Nut must undergo rigorous heat treatment to achieve its final mechanical properties. This typically involves a quenching and tempering process. The nuts are heated to a critical temperature, altering their internal crystalline structure, and then rapidly cooled (quenched) in oil or water. This rapid cooling locks the steel into a highly hardened state.
However, fully quenched steel is often too brittle for structural applications. Therefore, the nuts are subsequently tempered—reheated to a lower temperature and allowed to cool slowly. This tempering process relieves internal stresses and restores the necessary ductility to the metal, resulting in a Carbon Steel Heavy Hex Nut that is incredibly strong yet resilient enough to absorb impact forces without shattering.
One of the greatest enemies of any infrastructure project is corrosion. Bridges and viaducts are continuously exposed to harsh environmental elements: torrential rain, freezing snow, fluctuating temperatures, and, in coastal or northern regions, highly corrosive road salts and marine moisture. If a Carbon Steel Heavy Hex Nut is left unprotected, it will rapidly oxidize, leading to rust. Rust not only degrades the physical mass of the nut, weakening its load-bearing capacity, but it can also cause the nut to fuse to the bolt, making future maintenance or replacement nearly impossible.
To combat this, structural fasteners are subjected to various anti-corrosion treatments. The choice of coating depends entirely on the environment in which the bridge or viaduct is located. For indoor or highly protected structural frameworks, a plain black finish with a light oil coating may suffice. However, for exposed outdoor infrastructure, heavy-duty protective coatings are an absolute necessity.
The most common and effective method for protecting a Carbon Steel Heavy Hex Nut in outdoor environments is Hot-Dip Galvanizing (HDG). In this process, the thoroughly cleaned nuts are submerged in a bath of molten zinc. The zinc metallurgical reacts with the steel, creating a series of highly abrasion-resistant zinc-iron alloy layers, topped with a layer of pure impact-resistant zinc. This coating provides both barrier protection and cathodic protection; even if the coating is scratched, the surrounding zinc will sacrifice itself to protect the underlying steel from rusting.
Other coating options include zinc electroplating, which provides a thinner, more cosmetically appealing finish suitable for less aggressive environments, and advanced fluoropolymer (PTFE) coatings. PTFE coatings offer exceptional corrosion resistance and have the added benefit of reducing friction during installation, ensuring highly accurate torque-to-tension relationships when tightening the fastener.
The highest quality fastener in the world is virtually useless if it is not installed correctly. The installation of a Carbon Steel Heavy Hex Nut in a structural joint is a precision operation that requires trained personnel and calibrated equipment. The goal of installation is to stretch the bolt to a specific tension, clamping the steel plates together with immense force. If the nut is under-tightened, the joint may slip or vibrate loose. If it is over-tightened, the bolt may yield and permanently lose its elasticity, leading to eventual failure.
There are several approved methods for installing structural fasteners. The Turn-of-Nut method is a highly reliable technique where the nut is first brought to a "snug-tight" condition (using an impact wrench until the plates are firmly in contact), and then rotated a specific, predetermined number of degrees (e.g., 1/3 turn, 1/2 turn) depending on the length and diameter of the bolt. This method relies on the geometric displacement of the threads to achieve the correct tension.
Another common installation method involves the use of a calibrated torque wrench. However, because friction between the threads and the bearing surface can vary wildly depending on lubrication, rust, or debris, torque is not always a perfect indicator of tension. To overcome this, engineers often utilize Direct Tension Indicators (DTIs). These are specialized washers with raised protrusions that are placed under the Carbon Steel Heavy Hex Nut.
As the nut is tightened, it flattens the protrusions on the DTI washer. Installers use a specialized feeler gauge to measure the gap between the nut and the washer. Once the gap is reduced to a specific microscopic measurement, the installer knows with absolute certainty that the correct clamping tension has been achieved, regardless of the torque applied. This guarantees the safety and reliability of the structural connection.
Infrastructure maintenance is a continuous, decades-long commitment. While a properly specified and installed Carbon Steel Heavy Hex Nut is designed to last the lifetime of the bridge or viaduct, routine inspection and maintenance are mandatory to ensure public safety. Transportation authorities and civil engineering firms employ dedicated teams of bridge inspectors who rigorously evaluate the condition of structural connections on a scheduled basis.
Visual inspections are the first line of defense. Inspectors look for obvious signs of distress, such as heavy rust bleeding from the joint, missing nuts, or gaps between the steel plates that indicate a loss of clamping force. They also check for signs of galvanic corrosion, which can occur if dissimilar metals are improperly joined without adequate isolation.
When visual inspections suggest a potential issue, or during mandated deep-level structural audits, advanced non-destructive testing (NDT) techniques are employed to evaluate the Carbon Steel Heavy Hex Nut and its corresponding bolt. Ultrasonic testing is frequently used; high-frequency sound waves are sent through the fastener to detect microscopic internal cracks or flaws that are invisible to the naked eye.
Additionally, inspectors may use specialized torque verification tools to ensure that the nuts have not backed off due to decades of vibration. If a nut is found to be loose or severely corroded, it cannot simply be re-tightened. Structural codes dictate that the entire fastener assembly (bolt, nut, and washer) must be completely removed and replaced with new, certified components to restore the joint to its original engineered strength.
It is crucial for procurement officers and junior engineers to understand why standard hex nuts cannot be substituted for a Carbon Steel Heavy Hex Nut in structural applications. The differences go far beyond mere aesthetics; they are deeply rooted in mechanical engineering principles. A standard hex nut is designed for general-purpose fastening—securing machinery panels, automotive components, or light-duty construction materials. They are not engineered to withstand the massive shear and tensile loads of a bridge girder.
The primary difference is dimensional. The heavy hex profile provides a significantly larger distance across the flats. This means a larger wrench is required to turn it, allowing for the application of much higher torque without rounding off the corners of the nut. More importantly, the larger footprint distributes the clamping force over a wider area of the steel beam, preventing the nut from embedding itself into the softer structural steel under high tension.
In addition to being wider, the Carbon Steel Heavy Hex Nut is also thicker than a standard nut. This increased thickness provides more internal threads to engage with the bolt. In high-tension applications, the failure mode must always be the yielding (stretching) of the bolt body, never the stripping of the threads. The extra thread engagement provided by the heavy hex design guarantees that the shear strength of the internal threads exceeds the tensile strength of the bolt, ensuring a safe, predictable connection.
When an engineer specifies a high-strength structural heavy hex nut, they are relying on these exact dimensional superiorities to calculate the safety factors of the entire bridge or viaduct. Substituting a standard nut would instantly invalidate these mathematical models and put the entire structure at risk of catastrophic failure.
To further clarify the application and specifications of these critical components, here are some of the most frequently asked questions regarding their use in heavy infrastructure:
Q: Can a Carbon Steel Heavy Hex Nut be reused after it has been fully tensioned?
A: Generally, no. In structural applications, particularly slip-critical connections, the bolts and nuts are tensioned past their yield point to achieve maximum clamping force. This permanently deforms the threads. Reusing a Carbon Steel Heavy Hex Nut compromises its structural integrity and is strictly prohibited by most civil engineering codes.
Q: What is the difference between Grade 2H and Grade DH for a Carbon Steel Heavy Hex Nut?
A: Both are high-strength grades, but they fall under different standards. Grade 2H is specified under ASTM A194 and is heavily used in high-temperature and high-pressure applications, though also common in structural work. Grade DH is specified under ASTM A563 and is specifically designed for use with high-strength structural bolts like ASTM A490. Grade DH nuts are typically slightly harder and stronger.
Q: Why do some Carbon Steel Heavy Hex Nuts have a blue or green coating?
A: Colored coatings are often advanced fluoropolymer (PTFE/Teflon) or specialized epoxy coatings. These provide extreme corrosion resistance, often superior to galvanizing in highly acidic or chemical environments. The color also helps inspectors easily identify the specific grade or coating type from a distance during bridge audits.
Q: How does temperature affect the performance of a Carbon Steel Heavy Hex Nut?
A: Extreme cold can cause standard steel to become brittle and susceptible to impact fracture. However, structural grade carbon steel is alloyed and heat-treated to maintain its ductility even in sub-zero temperatures. Conversely, extreme heat (like in a fire) can cause the steel to lose its temper and strength, which is why fireproofing structural connections is vital in building construction, though less of an issue in open-air bridges.
Q: Is lubrication required when installing a Carbon Steel Heavy Hex Nut?
A: Yes, especially for galvanized nuts. The galvanizing process creates a rough surface that dramatically increases thread friction. Without proper lubrication (often a specialized wax dye applied at the factory), the torque applied by the wrench will be wasted on overcoming friction rather than stretching the bolt, resulting in a dangerously loose connection. Galvanized nuts must always be lubricated and tested as an assembly.
The construction of bridges, viaducts, and massive structural frameworks leaves absolutely no room for error. The fasteners chosen for these projects carry the immense responsibility of holding thousands of tons of steel together under constant, dynamic stress. The Carbon Steel Heavy Hex Nut has proven itself time and again as the definitive solution for these extreme engineering challenges.
By choosing this specialized fastener, engineering firms and construction crews guarantee the safety and longevity of their projects. The advantages of integrating the Carbon Steel Heavy Hex Nut into structural designs are clear and measurable:
Superior Load Distribution: The wider bearing surface prevents damage to structural steel plates and ensures an even distribution of massive clamping forces.
Maximum Thread Engagement: Increased thickness guarantees that the nut will not strip, allowing high-strength bolts to reach their full tensile capacity safely.
Exceptional Vibration Resistance: The heavy hex profile creates immense friction, locking the joint securely and preventing self-loosening caused by heavy traffic and wind loads.
High-Strength Metallurgy: Precisely alloyed and heat-treated carbon steel provides the perfect balance of extreme hardness and necessary ductility to absorb impact forces.
Versatile Corrosion Protection: Compatible with a wide range of coatings, including Hot-Dip Galvanizing and PTFE, ensuring decades of rust-free performance in the harshest outdoor environments.
Standardized Reliability: Manufactured to strict ASTM and ASME standards, providing engineers with predictable, mathematically verifiable performance data for structural modeling.
Ultimately, the Carbon Steel Heavy Hex Nut is more than just a piece of hardware; it is a foundational pillar of modern civil engineering. Its robust design, reliable performance, and unparalleled strength make it the undisputed choice for securing the bridges and viaducts that connect our world.
