Fastener failure in high-vibration or high-pressure applications often stems from improper stud specification rather than outright material defects. Engineers frequently blame raw steel when a critical joint fails. In reality, incorrect component selection causes most mechanical breakdowns. When assemblies shake and experience intense stress, relying on the wrong fastening component guarantees premature fatigue. Unlike fully threaded rods, a Double End Stud provides unthreaded middle sections for precise clamping and reduced fatigue. They isolate shear forces away from vulnerable threads. This guide breaks down the critical variations, dimensional standards, and compliance criteria required to specify and source the correct components for industrial, automotive, and structural applications. We will explore how grip length directly dictates tension distribution. You will learn to navigate complex thread classes and material grades effectively. Finally, we offer a clear roadmap to secure reliable parts for your most demanding assemblies.
Specifying the correct middle unthreaded length (grip length) is as critical as overall length to ensure proper tension distribution.
Configurations like the Double Ended Stud With Hex and Double Ended Stud with Flange reduce installation time and simplify torque application.
Selecting Unequal Double Threaded Studs allows for mating disparate tap holes and nut requirements across complex assemblies.
Procurement evaluation must prioritize material traceability (MTRs) and strict adherence to thread tolerance classes (e.g., Class 2A/3A fit).
Fastening high-stress joints demands absolute precision. You cannot simply grab any threaded rod and expect long-term stability. The mechanical differences between fastener types dictate their performance under heavy load. A fully threaded stud lacks an unthreaded body. Its continuous threads act as stress risers along the entire shaft. They weaken quickly under shear loads. A tap end stud features an interference fit on one end. It locks tightly and semi-permanently into a tapped hole. This makes routine removal quite difficult.
Conversely, a Double End Stud Bolt uses free-running threads on both sides. This setup allows easy assembly and straightforward maintenance. The smooth middle section, known as the shank, plays a critical mechanical role. It absorbs shear stress far better than a threaded section can. It prevents sharp threads from grinding against the inside of the clamped joint. The unthreaded body acts as a solid steel dowel. It aligns the mating parts flawlessly.
Common applications for these components remain non-negotiable. Petrochemical plants rely on them heavily for high-pressure flange connections. Automotive engine blocks require them for securing heavy cylinder heads. Large-scale structural steel joints use them to maintain precise architectural alignment. In these scenarios, the joint experiences constant thermal expansion and severe vibration. You will frequently see these studs deployed where failure could result in catastrophic safety hazards.
Selecting the wrong body type dramatically increases your assembly time. It also complicates routine maintenance for end-users. You must assess available types based on your exact tooling access. Consider your structural requirements carefully before ordering. Using the correct profile streamlines your entire manufacturing operation.
These feature identical thread lengths on both ends. They serve as the industry standard for general flange mating. Both sides of the joint require identical nut engagement. They offer straightforward, predictable installation. Mechanics tighten nuts symmetrically on both ends to compress the joint evenly. This provides uniform load distribution across the entire flange face. They represent the most common configuration in piping infrastructure.
Sometimes, both ends of a joint demand entirely different specifications. An Unequal Double Threaded Stud features different thread lengths on each end. Occasionally, they also feature different thread pitches. Use cases vary widely in heavy machinery. Often, the engagement end taps directly into a cast iron housing. This blind hole needs a longer thread depth for secure anchoring. The protruding nut end needs only standard engagement length. This configuration provides maximum pull-out resistance without wasting external space.
Installation torque can sometimes twist the entire stud inside the hole. A Double Ended Stud With Hex features a forged hex drive integrated into the center shank. This design offers a massive mechanical advantage. Technicians use a standard wrench to hold the stud completely stationary. They torque the retaining nut simultaneously. This totally prevents stud rotation. It eliminates severe thread galling risks during automated assembly processes. Wind turbine manufacturers frequently use this style for awkward maintenance positions.
Blind holes pose a specific insertion challenge during rapid manufacturing. A Double Ended Stud with Flange integrates a built-in washer or flange in the center body. This flange acts as a positive mechanical stop during installation. It prevents technicians from driving the stud too deeply into tapped holes. It ensures exact grip length positioning every single time. It guarantees optimal thread protrusion for the final nut tightening sequence. Robotics assembly lines rely heavily on this configuration.
Buyers must understand dimensional standards deeply to avoid costly procurement mistakes. Specifying exact parameters ensures your assembly functions exactly as designed.
Core Sizing Dimensions require strict attention. You must provide four critical measurements to your manufacturer:
Overall Length (OAL): The total end-to-end measurement of the entire piece.
Thread Length 1: The specific length of the primary engagement end.
Thread Length 2: The length of the secondary nut end.
Unthreaded Body Length: The smooth, solid shank situated in the middle.
Thread Pitch Standards dictate how the fastener handles vibration and load. UNC (Unified National Coarse) threads handle general industrial loads exceptionally well. They resist cross-threading during rapid, high-volume assembly. UNF (Unified National Fine) threads provide superior tension control. They resist loosening aggressively in high-vibration environments. Choose UNF for critical automotive or aerospace applications. Choose UNC for heavy structural steel frameworks.
Understanding diameters is vital for structural integrity. Industrial sizes range from 1/4 inch up to 2 inches or more. Heavy structural joints demand significantly larger diameters to withstand massive shear forces. Buyers must strictly observe cross-compatibility warnings. Metric and Imperial components often look similar but they never mix. Driving a DIN standard metric stud into an ASTM Imperial tapped hole will destroy the internal threads. This single mistake ruins entire castings and stalls production lines indefinitely.
Tolerance Classes dictate the physical fit between mating threads. Class 2A provides a reliable, general commercial fit. It offers a slight clearance for easy, fast threading. Class 3A delivers a highly tight tolerance fit. Aerospace and precision defense assemblies demand Class 3A strictly. However, specifying tight tolerances increases manufacturing lead times heavily. It requires slower CNC machining speeds. It also drives up the per-unit cost significantly. Do not over-specify tolerance classes unless your specific application absolutely requires it.
The chart below outlines standard measurement criteria for accurate dimensional procurement:
Dimension Category | Measurement Focus | Primary Function in Assembly |
|---|---|---|
Overall Length (OAL) | End-to-end total distance | Determines structural clearance and total joint envelope |
Thread Length 1 (Engagement) | Distance from end to unthreaded shank | Provides exact anchor depth inside tapped castings |
Thread Length 2 (Nut End) | Distance from opposite end to shank | Ensures full nut engagement and proper thread protrusion |
Unthreaded Body (Grip) | Smooth center section | Absorbs dynamic shear forces and aligns joint components |
Choosing the right physical shape means nothing if the underlying material fails. A robust material matrix defines the lifespan of your fasteners.

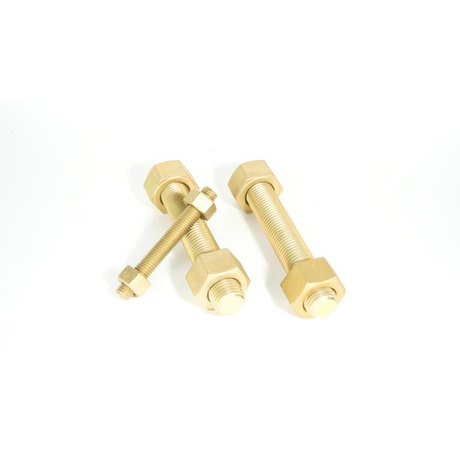

Carbon and Alloy Steel dominate heavy industrial environments. ASTM A193 Grade B7 represents a highly common, dependable standard. It offers immense yield strength. It suits high-temperature and high-pressure piping flanges perfectly. However, bare alloy steel rusts quickly. It requires specialized plating or coating for basic corrosion resistance. A common mistake involves deploying bare B7 studs in humid coastal areas, leading to rapid joint degradation.
Stainless Steel components perform entirely differently. Grades 304 and 316 (often certified as ASTM A193 B8 or B8M) resist harsh corrosive environments effortlessly. They excel in offshore chemical plants and marine applications. You must note the mechanical tradeoff here. Stainless steel yields at a significantly lower raw strength compared to heat-treated alloy steel. Engineers must account for this lower tensile limit during the design phase to prevent accidental shearing.
Coatings and Finishes dictate environmental survivability. Bare steel deteriorates rapidly in humid conditions. Zinc plating provides basic indoor corrosion protection. PTFE (Teflon) coatings excel in brutal offshore and chemical sectors. They resist severe chemical weathering. They also lower the friction coefficient, preventing thread galling during maintenance. Hot Dip Galvanized (HDG) finishes offer thick, highly durable zinc layers. HDG suits outdoor structural applications perfectly. However, HDG requires over-tapped nuts to accommodate the unusually thick zinc coating layer.
Trust and Authority Markers separate reliable vendors from risky suppliers. Buyers must demand complete, unbroken lot traceability. Mill Test Reports (MTRs) verify the raw material chemistry accurately. They also confirm physical destructive testing results. Ensure your components adhere to specific, recognized industry standards. Look for ASME B16.5 compliance for pressure pipe flanges. Look for DIN 938 or DIN 939 for strict metric stud applications. This rigorous documentation ensures safety, liability protection, and operational reliability.
Choosing a fastener supplier requires careful, methodical vetting. You evaluate vendors across several strict dimensions to guarantee project success.
Manufacturing Origin: Domestic versus imported origins matter greatly. Many government, military, or infrastructure contracts demand DFARS compliance. The Buy America Act strictly regulates raw material sources. Verify these compliance requirements before placing any large order.
Custom vs. Off-the-Shelf: Assess vendor manufacturing capabilities carefully. Do they possess in-house CNC machining centers? Fast-turnaround unequal studs require localized, agile production. Hex-center studs often require specialized forging equipment. Vendors relying purely on overseas standard catalogs cannot adapt quickly to custom engineering drawings.
Quality Assurance: Look closely for active ISO 9001 certification. Certifications prove fundamental operational maturity. Ask about their on-site tensile and hardness testing laboratory. Vendors must validate their material claims independently. Relying solely on third-party documents from overseas mills carries significant operational risk.
Standardize your request process to eliminate communication errors. Download a comprehensive sizing template to capture all critical dimensions accurately. Consult a licensed structural engineer if vibration loads or thermal cycles seem excessive. Discussing Double end stud sizes with an experienced manufacturing team prevents catastrophic design flaws. Request a technical quote featuring exact physical specifications, thread classes, and all required MTR documentation upfront.
The right double end stud perfectly aligns your mechanical design with actual installation reality. It bridges the critical gap between theoretical blueprints and harsh field assembly. Proper specification prevents costly downtime and dangerous joint failures.
Avoid over-specifying tight tolerances unless your application absolutely necessary demands them. Excessive precision wastes your procurement budget unnecessarily. However, you must never compromise on strict material traceability. Basic thread class fit remains entirely non-negotiable for fundamental joint safety.
Stop guessing your critical fastener specifications today. Compile your environmental parameters, load requirements, and engineering drawings. Contact a dedicated sales and engineering team for a custom recommendation tailored perfectly to your exact operational needs.
A: Tap end studs feature a tighter thread fit on the engagement end. This is often a Class 3 or interference fit meant to be semi-permanent in a tapped hole. Double end studs typically use free-running threads on both ends, allowing standard nuts to spin easily on either side.
A: You typically measure double end studs from end-to-end to determine the Overall Length (OAL). However, certain specialized industries measure from first-thread to first-thread. You must clarify the industry standard measurement practice with your vendor during the quoting phase to avoid costly procurement errors.
A: Yes, this configuration frequently solves unique assembly challenges. Engineers often specify a coarse thread for the cast iron base to prevent stripping. They then specify a fine-thread on the nut end for precision tensioning and superior vibration resistance.
A: Specify a hex-center stud in automated assembly lines or tight-clearance maintenance scenarios. If gripping a standard unthreaded shank with pliers risks thread damage, a hex body provides a secure drive point. This ensures technicians can apply adequate torque without spinning the stud.
