How To Select & Install High Strength Heavy Hex Nuts For Wind Turbine Tower Stability

A modern utility-scale wind turbine requires up to 25,000 structural fasteners. A single failure often stems from fatigue, vibration, or stress concentration. This failure can cause catastrophic downtime or complete tower collapse. Standard hardware cannot handle extreme dynamic loads. Harsh environmental conditions and multi-megawatt vibration profiles destroy basic components rapidly. Securing a wind tower requires moving beyond basic specification sheets. You must look closely at engineered details. This guide explains how to evaluate, specify, and install these critical fasteners. We detail how to use a high strength heavy hex nut to ensure absolute structural integrity. You will learn to mitigate aggressive corrosion and minimize lifetime maintenance requirements. Wind energy infrastructure demands extreme precision. Our technical breakdown offers practical steps for engineers. You can confidently optimize your next utility-scale procurement strategy.

Key Takeaways

• Grade Matching is Non-Negotiable: High-strength structural bolts must be paired with compatible heavy hex nuts according to ASTM, DIN, or ISO requirements. Typical combinations include ASTM A563 Grade DH, ASTM A194 Grade 2H, DIN 934 Property Class 8/10/12, and ISO 4032 Property Class 8/10.

• Environment Dictates Material: Offshore applications demand duplex stainless steel, super duplex stainless steel, or advanced zinc-flake coated fastening systems. Onshore applications commonly utilize high-strength alloy carbon steel fasteners with proven low-temperature toughness.

• Installation Micro-Details Matter: Accurate torque application and strict compliance with proper washer installation procedures are critical to preventing stress concentrations and fatigue failures.

• Manufacturing Traceability: Procurement teams should prioritize suppliers capable of thread rolling, controlled quenching and tempering, complete material traceability, and third-party mechanical testing.

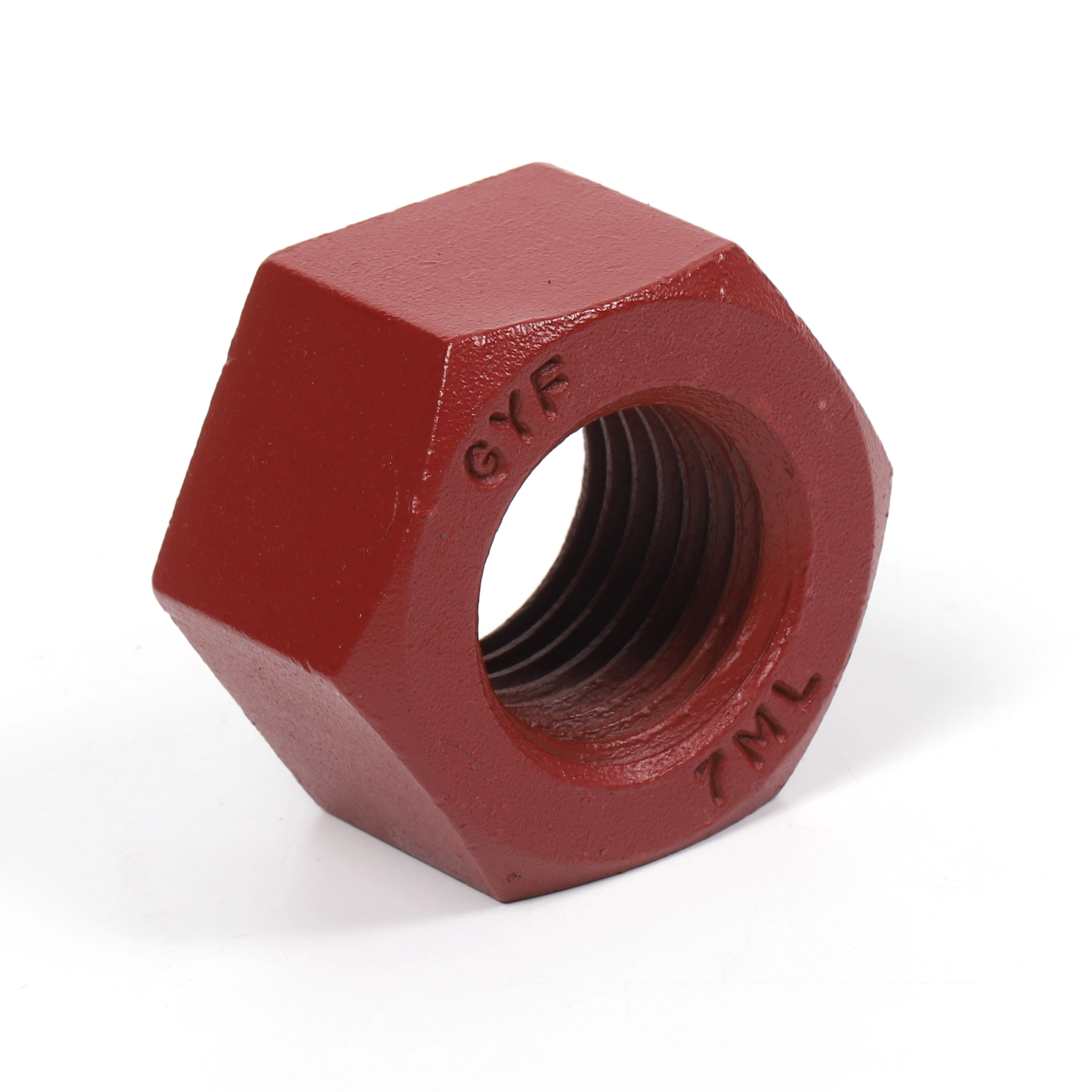

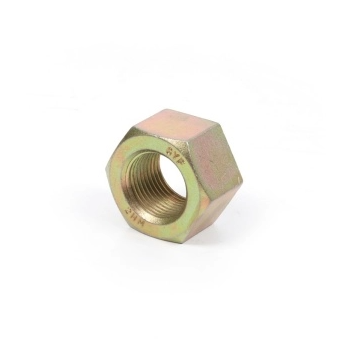

The Engineering Case for High Strength Heavy Hex Nuts in Wind Turbines

Standard hex nuts lack sufficient thread engagement area. They cannot effectively distribute the massive clamping forces generated in modern wind turbine structures.

Wind turbine foundations, tower flange joints, nacelle assemblies, blade root connections, and yaw systems rely on heavy hex nuts capable of maintaining preload under extreme cyclic loading conditions. These critical joints are subjected to continuous vibration, fluctuating wind loads, and environmental exposure throughout the turbine's service life.

The wider and thicker profile of a heavy hex nut provides a significantly larger bearing surface and increased thread engagement. This geometry helps distribute loads more evenly, reducing localized stress concentrations and improving fatigue resistance.

Failure avoidance demands precise engineering choices. Modern wind turbine foundations increasingly utilize prestressed anchor bolt systems that depend on proper nut selection to maintain long-term structural integrity and prevent preload loss.

Evaluation Criteria: Specifying for Onshore vs. Offshore Environments

Environmental profiling is crucial before specifying hardware. Engineers must evaluate humidity, temperature fluctuations, corrosion exposure, and atmospheric salinity when selecting fastening systems.

Onshore environments pose distinct challenges including ultraviolet exposure, temperature cycling, and dynamic loading. Engineers typically specify high-strength alloy carbon steel fasteners with verified low-temperature impact performance.

For onshore wind projects, ASTM A563 Grade DH, ASTM A194 Grade 2H, DIN 934 Property Class 8–12, and ISO 4032 Property Class 8–10 nuts are commonly specified depending on bolt class and structural requirements.

Offshore environments require a different approach. Saltwater spray, humidity, and chloride-induced corrosion can rapidly degrade conventional carbon steel fasteners. Duplex stainless steel, super duplex stainless steel, and advanced zinc-flake coatings are frequently utilized to maximize service life.

Table 1: Environmental Profiling for Wind Tower Fasteners

Mechanical Compatibility and the "Matched Strength" Rule

The golden rule of bolting revolves around mechanical compatibility. A nut must match or exceed the proof load requirements of the mating bolt.

Improper grade matching can result in thread stripping, preload loss, premature fatigue, and eventual structural failure.

Heavy Hex Nut Standards Used in Wind Energy Projects

Wind turbine towers rely on highly loaded bolted connections throughout their structure. To ensure reliability, heavy hex nuts must comply with recognized international standards.

Common standards used in wind power applications include:

ASTM A194/A194M

• Grade 2H

• Grade 7

• Grade 7M

ASTM A563/A563M

• Grade DH

DIN 934

• Property Class 8

• Property Class 10

• Property Class 12

ISO 4032

• Property Class 8

• Property Class 10

ASTM A194 Grade 2H and ASTM A563 Grade DH are widely specified for wind turbine foundations, anchor rod systems, and structural flange connections.

DIN 934 and ISO 4032 property classes are commonly used in European wind turbine manufacturing, particularly when paired with ISO 898-1 Class 8.8, 10.9, and 12.9 bolts.

Typical Nut and Bolt Matching Matrix

Applications of High Strength Heavy Hex Nuts in Wind Energy

Heavy hex nuts are used throughout wind turbine structures to maintain preload and structural integrity under cyclic loading conditions.

Wind Turbine Foundations

ASTM A194 Grade 2H and ASTM A563 Grade DH heavy hex nuts are widely used in anchor bolt systems securing the tower to reinforced concrete foundations.

Tower Flange Connections

Tower sections are connected through large-diameter flange joints that require reliable preload retention under fluctuating wind loads.

Nacelle and Yaw Systems

Yaw bearings and nacelle structures experience continuous rotational movement and vibration. Properly matched high-strength heavy hex nuts help prevent loosening and fatigue failures.

Blade Root Connections

Blade root assemblies transfer substantial aerodynamic loads from the blades to the hub. High-strength fastening systems are essential for maintaining long-term operational safety.

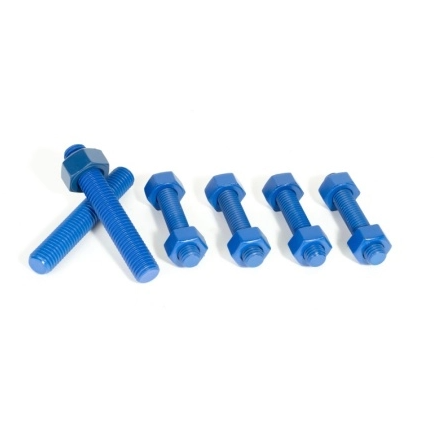

Offshore Wind Installations

Offshore turbines operate in highly corrosive environments. ASTM A194 Grade 7 and Grade 7M nuts, together with advanced corrosion protection systems, are commonly utilized to improve durability and reduce maintenance requirements.

Installation Protocols to Prevent Micro-Failures and Fatigue

Installation methods dictate the lifespan of the entire tower. Even perfectly specified hardware fails if installed incorrectly. Torque realities present the biggest hurdle for field technicians. You must understand the drastic difference between dry and lubricated states. Lubricants significantly reduce friction during tightening. This friction value is known as the K-factor. Moving from a dry state to a lubricated state drops the required torque drastically.

Applying dry torque values to lubricated threads is dangerous. It results in massive over-torquing. The bolt stretches past its elastic limit and enters plastic yield. Permanent damage occurs immediately. We recommend an evidence-based framework for torque application. Technicians must calibrate tools based on the specific anti-seize compound utilized on site.

Engineers enforce the "one bolt, one nut, two washers" mandate strictly. This requirement secures structural wind tower joints against eccentric loading. You place one washer under the bolt head. You place the second washer under the nut. This configuration protects the mating surfaces from rotational scoring.

Washer design involves crucial micro-details. The washer under the bolt head must feature an internal chamfer. This chamfer clears the radius where the bolt head meets the shank. Using a flat, unchamfered washer causes interference. The sharp edge of the washer digs into the bolt radius. This interference causes eccentric loading and rapid fatigue failure. It creates a localized stress riser that inevitably snaps the bolt.

Hole tolerances require exact machining. Wind turbine flanges typically utilize H12 or H13 clearance hole standards. These tolerances ensure proper alignment without excessive slop. Oversized holes reduce the bearing surface area. Undersized holes force technicians to hammer bolts into place. Hammering damages the protective zinc-flake coatings instantly.

Galling prevention requires proactive lubrication. Galling occurs when friction causes localized cold-welding between threads. It happens frequently when installing stainless steel variants. Technicians must utilize nickel-based anti-seize compounds. Controlled, slow torque application further mitigates this risk. Follow these numbered steps for flawless installation:

1. Inspect threads and remove all transit debris.

2. Verify the required clearance hole tolerances (H12/H13).

3. Apply specified nickel-based anti-seize if using stainless steel.

4. Install the chamfered washer facing the bolt head radius.

5. Install the standard washer beneath the heavy hex nut.

6. Apply torque smoothly using a calibrated hydraulic wrench.

Vetting Suppliers: Quality Control and Manufacturing Benchmarks

Procurement teams must audit fastener manufacturers rigorously. You cannot buy utility-scale wind fasteners from unverified catalogs. Shortlisting logic requires deep technical evaluations. Ask potential suppliers about their specific metallurgical controls. Verify their capacity to produce high-volume, defect-free batches.

Essential manufacturing processes define ultimate quality. You must demand thread rolling instead of thread cutting. Cutting removes material and interrupts the steel grain flow. Thread rolling presses the material into shape dynamically. This cold-work strengthening aligns the grain structure perfectly. Rolled threads deliver vastly superior fatigue resistance. They survive multi-megawatt vibration profiles much longer.

Thermal processing separates exceptional suppliers from average ones. Verify their quenching and tempering controls. Heat treatment achieves desired metallurgical properties. It increases raw tensile strength. However, improper quenching induces fatal brittleness. The manufacturer must document exact furnace temperatures and cooling bath mediums.

Documentation and traceability guarantee field safety. Require full material test reports (MTRs) for every shipment. The supplier must provide verified proof load testing data. Compliance with ISO, DIN, and ASTM traceability mandates is non-negotiable. If a failure occurs in the field, you must trace that specific nut back to its original steel billet.

Use the following bullet points to audit potential fastener suppliers:

• Confirm in-house capabilities for hot and cold forging.

• Review calibration records for their thread rolling machinery.

• Demand documented proof of precise quenching and tempering cycles.

• Require third-party salt spray test results for all surface coatings.

• Verify complete digital traceability from raw billet to finished product.

Conclusion

The high-strength heavy hex nut is not a generic commodity. It serves as a critical engineered component protecting multi-million-dollar wind energy assets from dynamic structural loads and harsh environmental conditions.

Proper selection of ASTM A194, ASTM A563, DIN 934, and ISO 4032 heavy hex nuts ensures compatibility with structural bolts, maintains preload integrity, and improves the long-term reliability of wind turbine foundations, tower flanges, nacelle assemblies, yaw systems, and blade root connections.

By prioritizing correct grade matching, corrosion protection, installation procedures, and supplier qualification, engineers and procurement teams can significantly reduce maintenance costs and maximize turbine service life.

FAQ

What is the difference between a standard hex nut and a heavy hex nut?

Heavy hex nuts are wider and thicker than standard hex nuts. The increased bearing surface and thread engagement provide higher proof load capacity and improved fatigue resistance. Heavy hex nuts used in wind turbines commonly comply with ASTM A194, ASTM A563, DIN 934, or ISO 4032 standards.

What heavy hex nut standards are commonly used in wind turbines?

ASTM A194 Grade 2H, Grade 7, Grade 7M, ASTM A563 Grade DH, DIN 934 Property Class 8, 10, and 12, and ISO 4032 Property Class 8 and 10 are among the most widely specified standards for wind turbine applications.

Why are Dacromet or Geomet coatings preferred for wind turbine fasteners?

These zinc-flake coatings provide excellent corrosion protection without introducing hydrogen embrittlement, making them ideal for both onshore and offshore wind projects.

How does lubrication affect torque requirements?

Lubrication reduces thread friction and changes tightening behavior. Torque values must always be adjusted according to the specified lubrication condition.

What causes thread galling and how can it be prevented?

Galling occurs when friction causes localized cold welding between threads. Proper anti-seize lubricants and controlled torque application help prevent this issue.
